FEATURES

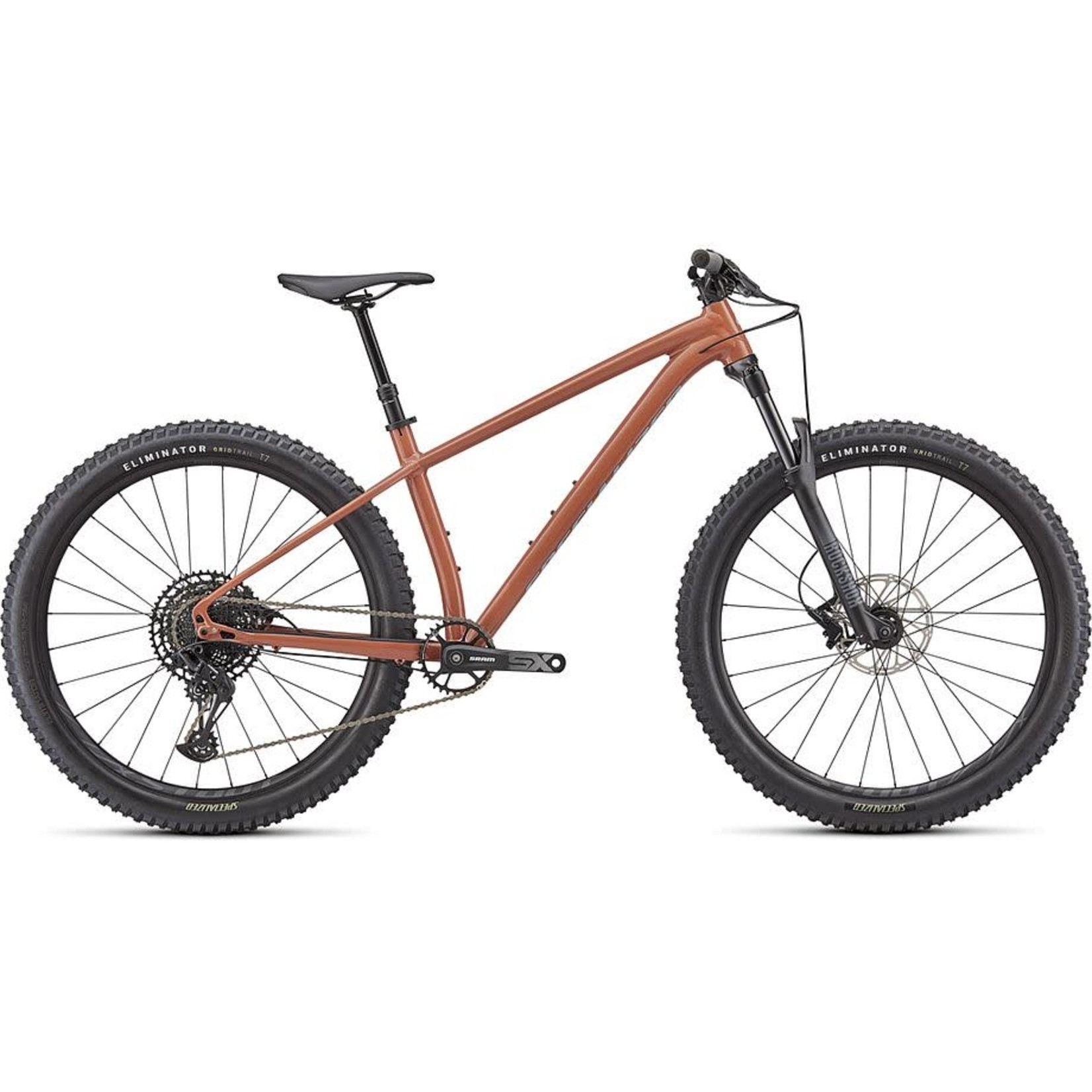

Equipped with an all-new longer, lower, and rowdier chassis, we’ve added 27.5x2.6 wheels and tires to the Fuse Sport 27.5 to create a bike that lets you hit rocks and roots at speed with absolute control.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverabilty on tight trails. And while this Fuse’s 27.5x2.6 tires give it ample traction and stability, it’s also compatible with 29er wheels and tires.
PERFECTLY DIALED
Fail to nail the geometry and advanced designs will still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
- 130-millimeters of suspension courtesy of a RockShox Judy Silver TK fork.
- Highlights include SRAM Level hydraulic disc brakes and TranzX dropper post.
- Wide-range SRAM SX 1X drivetrain provides crisp shifts and gearing to tackle any hill.
BIKE SPECS
Frame
Specialized A1 Premium Aluminum, 148mm thru-axle, tapered head tube, internal cable routing
Fork
RockShox Judy Silver TK, air spring, 42mm offset, 130mm of travel
Stem
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Grips
Specialized Trail Grips
Handlebars
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Front Brake
SRAM Level, hydraulic disc, 180/160mm
Rear Brake
SRAM Level, hydraulic disc, 160mm
Rear Derailleur
SRAM SX Eagle, 12-speed
Shift Levers
SRAM SX Eagle, trigger, 12-speed
Cassette
SRAM PG-1210 Eagle, 11-50t
Chain
SRAM, SX Eagle, 12-speed
Crankset
SRAM, SX Eagle, 12-speed Boost, Powespline, 32T
Bottom Bracket
SRAM Powerspline
Rims
Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless compatible
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Front Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Inner Tubes
Presta, 40mm valve
Saddle
Body Geometry Bridge Saddle, steel rails
SeatPost
TranzX Dropper, 30.9mm, XS-S: 100mm, M-XL: 120mm
Seat Binder
Alloy, 38.6mm
